MPD2T28125-700

PIN Diode Driver

MPD2T28125-700 Features

* High Output Voltage and High Output Current PIN Diode Driver in Surface Mount Package

* Usable with MSW2000, 2010, 2030, 2040 and 2050 Series T-R and Symmetrical High Power SP2T Switches.

* Operates from Positive Voltage Only: +5 V and +28 V to +125 V

* High Output

MPD2T28125-700 General Description

The MPD2T28125-700 Surface Mount PIN Diode Driver is designed to provide high voltage and high current bias signals to high power PIN diode single pole double throw (SPDT or SP2T) switches. This PIN diode driver is intended to operate with Aeroflex / Metelics MSW2000, MSW2010, MSW2030, MSW2040 and M.

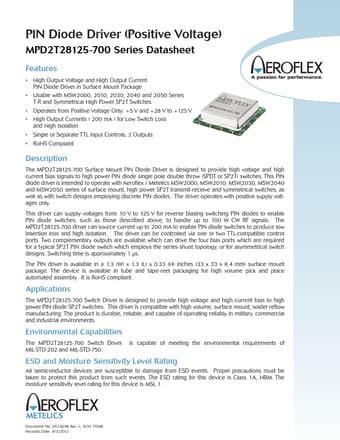

MPD2T28125-700 Datasheet (481.50 KB)

Preview of MPD2T28125-700 PDF

Datasheet Details

Part number:

MPD2T28125-700

Manufacturer:

Aeroflex

File Size:

481.50 KB

Description:

Pin diode driver.
