MTV4030-23

Varactor Diodes

MTV4030-23 Features

* Low Series Resistance

* High Q

* Extensive Selection of Capacitance Values Maximum Ratings Rating Operating Temperature Storage Temperature Device Dissipation ESD & MSL Ratings Limits Units -55 to +150 °C -65 to +200 °C 250 mW Class 0 (Human Body Model) & MSL1 Ap

MTV4030-23 General Description

The Aeroflex / Metelics MTV4030 Series Tuning Varactors are silicon abrupt junction devices. They offer the highest Q and lowest resistance available in 30 volt tuning devices. A unique silicon passivation process assures greater stability, reliability, and low leakage currents at higher temperature.

MTV4030-23 Datasheet (147.42 KB)

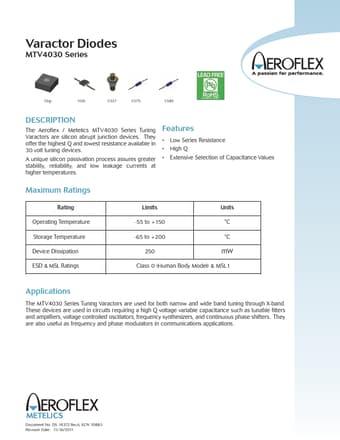

Preview of MTV4030-23 PDF

Datasheet Details

Part number:

MTV4030-23

Manufacturer:

Aeroflex

File Size:

147.42 KB

Description:

Varactor diodes.
