MTV4030-25, MTV4030-01 Datasheet - Aeroflex

MTV4030-25, MTV4030-01, Varactor Diodes

Varactor Diodes MTV4030 Series Chip H20 CS37 CS75 CS85 .
The Aeroflex / Metelics MTV4030 Series Tuning Varactors are silicon abrupt junction devices.

MTV4030-01-Aeroflex.pdf

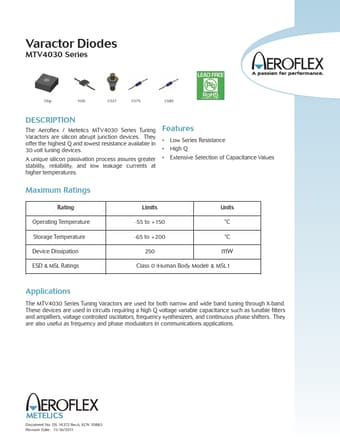

MTV4030-25 Datasheet Preview — This datasheet PDF includes multiple part numbers: MTV4030-25, MTV4030-01. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MTV4030-25, MTV4030-01

Manufacturer:

Aeroflex

File Size:

147.42 KB

Description:

Varactor Diodes

Note:

This datasheet PDF includes multiple part numbers: MTV4030-25, MTV4030-01.
Please refer to the document for exact specifications by model.

Features

* Low Series Resistance
* High Q
* Extensive Selection of Capacitance Values Maximum Ratings Rating Operating Temperature Storage Temperature Device Dissipation ESD & MSL Ratings Limits Units -55 to +150 °C -65 to +200 °C 250 mW Class 0 (Human Body Model) & MSL1 Ap

Applications

* The MTV4030 Series Tuning Varactors are used for both narrow and wide band tuning through X-band. These devices are used in circuits requiring a high Q voltage variable capacitance such as tunable filters and amplifiers, voltage controlled oscillators, frequency synthesizers, and continuous phase sh
