MTV4030-26, MTV4030-01 Varactor Diodes

MTV4030-26 Description

Varactor Diodes MTV4030 Series Chip H20 CS37 CS75 CS85 .
The Aeroflex / Metelics MTV4030 Series Tuning Varactors are silicon abrupt junction devices.

MTV4030-26 Features

* Low Series Resistance
* High Q
* Extensive Selection of Capacitance Values Maximum Ratings Rating Operating Temperature Storage Temperature Device Dissipation ESD & MSL Ratings Limits Units -55 to +150 °C -65 to +200 °C 250 mW Class 0 (Human Body Model) & MSL1 Ap

MTV4030-26 Applications

* The MTV4030 Series Tuning Varactors are used for both narrow and wide band tuning through X-band. These devices are used in circuits requiring a high Q voltage variable capacitance such as tunable filters and amplifiers, voltage controlled oscillators, frequency synthesizers, and continuous phase sh

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MTV4030-26, MTV4030-01. Please refer to the document for exact specifications by model.

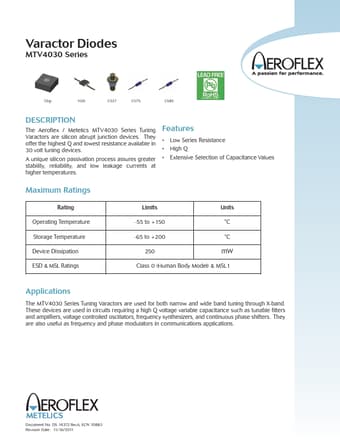

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MTV4030-26, MTV4030-01
Manufacturer
Aeroflex
File Size
147.42 KB
Datasheet
MTV4030-01-Aeroflex.pdf
Description
Varactor Diodes
Note
This datasheet PDF includes multiple part numbers: MTV4030-26, MTV4030-01.
Please refer to the document for exact specifications by model.
