MT2496 Synchronous Step-Down Converter

MT2496 Description

AEROSEMI MT2496 CASC 3A,4.5V-16V Input,500kHz Synchronous Step-Down Converter .
The MT2496 is a fully integrated, high. efficiency 3A synchronous rectified step-down converter.

MT2496 Features

* High Efficiency: Up to 96%
* 500KHz Frequency Operation
* 3A Output Current
* No Schottky Diode Required
* 4.5V to 16V Input Voltage Range
* 0.6V Reference
* Slope Compensated Current Mode Control for Excellent Line and Load Transient Response
* Integrated internal

MT2496 Applications

* Distributed Power Systems
* Digital Set Top Boxes
* Flat Panel Television and Monitors
* Wireless and DSL Modems
* Notebook Computer TYPICAL APPLICATION C2 22nF VIN CIN 22μF BS VIN SW MT2496 EN FB GND L 10μH R1 110k 1% R2 15k 1% Figure 1. Basic Application Circuit V

📥 Download Datasheet

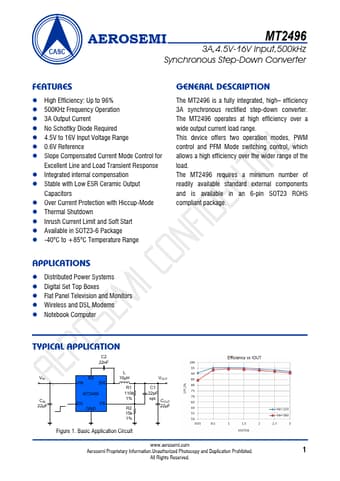

Preview of MT2496 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MT2496
Manufacturer
Aerosemi
File Size
730.00 KB
Datasheet
MT2496-Aerosemi.pdf
Description
Synchronous Step-Down Converter
