MT2499A Synchronous Step-Down Converter

MT2499A Description

AEROSEMI MT2499A CASC 3.5A,4.5V-21V Input,340KHz Synchronous Step-Down Converter .
The MT2499A is a fully integrated, high. efficiency 3.

MT2499A Features

* High Efficiency: Up to 94%
* 340KHz Frequency Operation
* 3.5A Output Current
* No Schottky Diode Required
* 4.5V to 21V Input Voltage Range
* 0.925V Reference
* Slope Compensated Current Mode Control for Excellent Line and Load Transient Response
* Integrated inter

MT2499A Applications

* Distributed Power Systems
* Digital Set Top Boxes
* Flat Panel Television and Monitors
* Wireless and DSL Modems
* Notebook Computer TYPICAL APPLICATION VIN CIN 22μF C2 22nF BS VIN SW MT2499A EN FB GND L 10μH R1 88.7K 1% R2 20K 1% VOUT COUT 22μF
* 2 Figure 1. Basi

📥 Download Datasheet

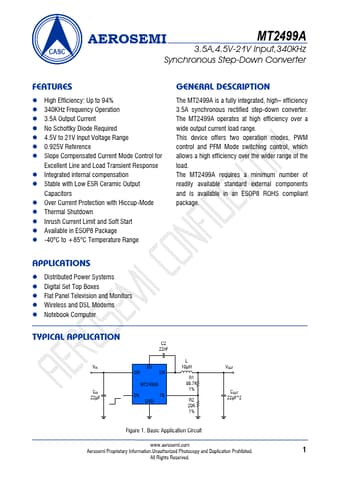

Preview of MT2499A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MT2499A
Manufacturer
Aerosemi
File Size
852.41 KB
Datasheet
MT2499A-Aerosemi.pdf
Description
Synchronous Step-Down Converter
