MT3406 Synchronous Step-Down Converter

MT3406 Description

AEROSEMI M3406 CASC 800mA,2V-6V Input,1.5MHz Synchronous Step-Down Converter .
The M3406 is a constant frequency, current mode step-down converter.

MT3406 Features

* High Efficiency: Up to 96%
* 1.5MHz Constant Frequency Operation
* 800mA Output Current
* No Schottky Diode Required
* 2V to 6V Input Voltage Range
* Output Voltage as Low as 0.6V
* PFM Mode for High Efficiency in Light Load
* 100% Duty Cycle in Dropout Operation

MT3406 Applications

* Cellular and Smart Phones
* Wireless and DSL Modems
* PDAs
* Portable Instruments
* Digital Still and Video Cameras
* DTV TYPICAL APPLICATION VIN CIN 10μF VIN SW M3406 EN FB GND L 2.2μH R1 200k 1% R2 100k 1% C1 22pF opt. VOUT COUT 10μF Figure 1. Basic Applicatio

📥 Download Datasheet

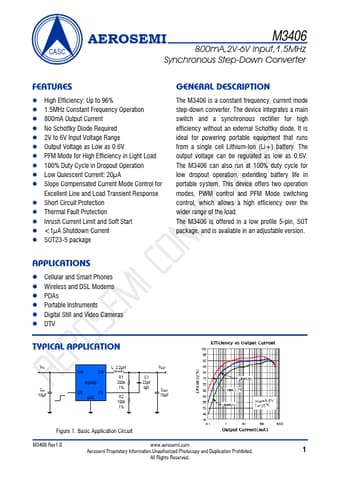

Preview of MT3406 PDF
