MT3410LB 1.5MHz Synchronous Step-Down Converter

MT3410LB Description

MT3410LB 1.3A,2.3V-7V Input,1.5MHz Synchronous Step-Down Converter .
The MT3410LB is high-efficiency,high frequency synchronous step-down DC-DC regulator ICs capable of delivering up to 1.

MT3410LB Features

* High Efficiency: Up to 96%
* 1.5MHz Constant Frequency Operation
* 1.3A Output Current
* No Schottky Diode Required
* 2.3V to 7V Input Voltage Range
* Output Voltage as Low as 0.6V
* PFM Mode for High Efficiency in Light Load
* 100% Duty Cycle in Dropout Operation

MT3410LB Applications

* Cellular and Smart Phones
* Wireless and DSL Modems
* PDAs
* Portable Instruments
* Digital Still and Video Cameras
* Set Top Box TYPICAL APPLICATION VIN CIN 22μF VIN SW MT3410LB EN FB GND L 2.2μH R1 200k 1% R2 100k 1% C1 22pF opt. VOUT COUT 22μF GENERAL DESCRIP

📥 Download Datasheet

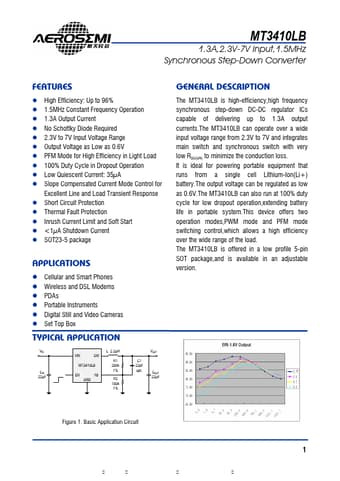

Preview of MT3410LB PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MT3410LB
Manufacturer
Aerosemi
File Size
500.56 KB
Datasheet
MT3410LB-Aerosemi.pdf
Description
1.5MHz Synchronous Step-Down Converter
