MT3420C - Synchronous Step-Down Converter

Product Overview

📥 Download Datasheet

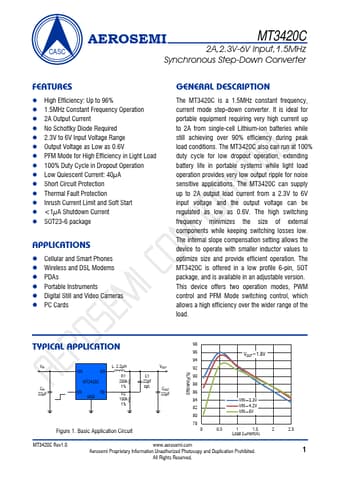

MT3420C Synchronous Step-Down Converter by Aerosemi - Datasheet Preview — Datasheet preview – MT3420C

Datasheet Details

Part number	MT3420C
Manufacturer	Aerosemi
File Size	257.25 KB
Description	Synchronous Step-Down Converter
Datasheet	MT3420C Datasheet
Additional preview pages of the MT3420C datasheet.

Product details

Description

The MT3420C is a 1.5MHz constant frequency, current mode step-down converter.

Features

High Efficiency: Up to 96%.
1.5MHz Constant Frequency Operation.
2A Output Current.
No Schottky Diode Required.
2.3V to 6V Input Voltage Range.
Output Voltage as Low as 0.6V.
PFM Mode for High Efficiency in Light Load.
100% Duty Cycle in Dropout Operation.
Low Quiescent Current: 40μA.
Short Circuit Protection.
Thermal Fault Protection.
Inrush Current Limit and Soft Start.
