MT3420

2A Synchronous Step-Down DC/DC Converter

MT3420 Features

* High Efficiency: Up to 95%

* 1.4MHz Constant Frequency Operation

* 2A Output Current

* No Schottky Diode Required

* 2.4V to 5.5V Input Voltage Range

* Output Voltage as Low as 0.6V

* Low Quiescent Current: 40µA

* Slope Compensated Current Mode Control for Excellent

MT3420 General Description

The MT3420 is a constant frequency, current mode PWM step-down converter. The device integrates a main switch and a synchronous rectifier for high efficiency without an external Schottky diode. It is ideal for powering portable equipment that runs from a single cell Lithium-Ion (Li+) battery. The ou.

MT3420 Datasheet (97.48 KB)

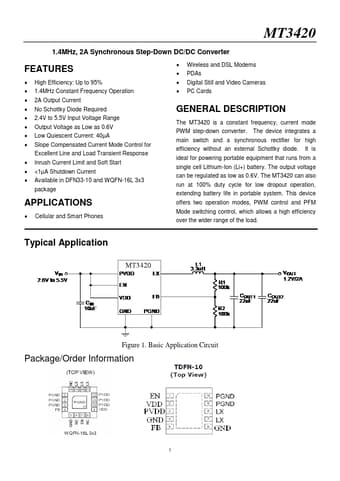

Preview of MT3420 PDF

Datasheet Details

Part number:

MT3420

Manufacturer:

ETC

File Size:

97.48 KB

Description:

2a synchronous step-down dc/dc converter.
