AA8641 - LOW VOLTAGE VIDEO AMPLIFIER

Product Overview

Agamem Microelectronic

📥 Download Datasheet

AA8641 LOW VOLTAGE VIDEO AMPLIFIER by Agamem Microelectronic - Datasheet Preview — Datasheet preview – AA8641

Datasheet Details

Part number	AA8641
Manufacturer	Agamem Microelectronic
File Size	228.11 KB
Description	LOW VOLTAGE VIDEO AMPLIFIER
Datasheet	AA8641 Datasheet
Additional preview pages of the AA8641 datasheet.

Product details

Description

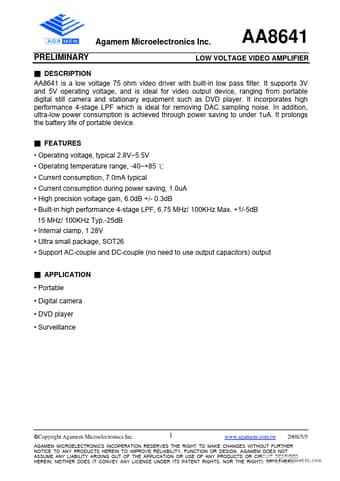

AA8641 is a low voltage 75 ohm video driver with built-in low pass filter.

Features

S.
Operating voltage, typical 2.8V~5.5V.
Operating temperature range, -40~+85 ℃.
Current consumption, 7.0mA typical.
Current consumption during power saving, 1.0uA.
High precision voltage gain, 6.0dB +/- 0.3dB.
Built-in high performance 4-stage LPF, 6.75 MHz/ 100KHz Max. +1/-5dB 15 MHz/ 100KHz Typ. -25dB.
Internal clamp, 1.28V.
Ultra small package, SOT26.
Support AC-couple and DC-couple (no need to use output capacit.
