1430G5 NetLight 1430G5 Type SONET/SDH Long-Reach Transceivers with Clock Recovery

The 1430G5-Type transceiver is a high-speed, costeffective optical transceiver that is compliant with the International Telecommunication Union Telecommunication (ITU-T) G.957 specifications for use in SONET and SDH long-reach applications. The 1430G5 operates at the OC-3/STM-1 rate of 155 Mbits/s. .

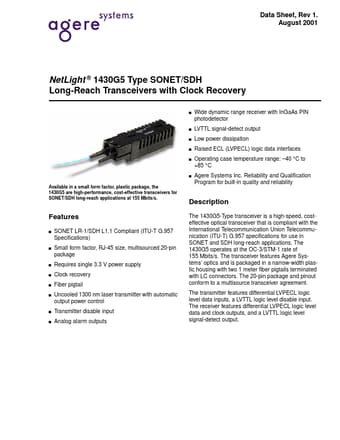

Data Sheet, Rev 1. August 2001 NetLight ® 1430G5 Type SONET/SDH Long-Reach Transceivers with Clock Recovery s Wide dynamic range receiver with InGaAs PIN photodetector LVTTL signal-detect output Low power dissipation Raised ECL (LVPECL) logic data interfaces Operating case temperature range: 40 °C to +85 °C Agere Systems Inc. Reliability and Qualification Program for built-in quality and reliability s s s s s Available in a small form factor, plastic package, the 1430G5 are high-pe.

1430G5 Features

* Agere Systems’ optics and is packaged in a narrow-width plastic housing with two 1 meter fiber pigtails terminated with LC connectors. The 20-pin package and pinout conform to a multisource transceiver agreement. The transmitter features differential LVPECL logic level data inputs, a LVTTL logic lev
