1430G5LL

NetLight 1430G5 Type SONET/SDH Long-Reach Transceivers with Clock Recovery

1430G5LL Datasheet (222.69 KB)

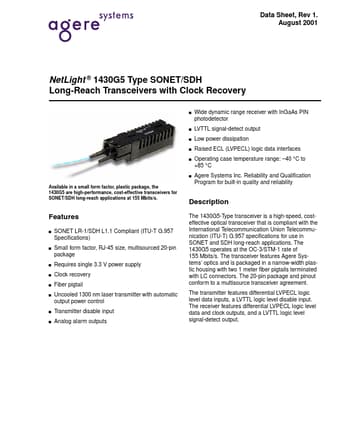

Preview of 1430G5LL PDF

Datasheet Details

Part number:

1430G5LL

Manufacturer:

Agere Systems

File Size:

222.69 KB

Description:

Netlight 1430g5 type sonet/sdh long-reach transceivers with clock recovery.
Data Sheet, Rev 1. August 2001 NetLight ® 1430G5 Type SONET/SDH Long-Reach Transceivers with Clock Recovery s Wide dynamic range receiver with InGaA.

1430G5LL Features

* Agere Systems’ optics and is packaged in a narrow-width plastic housing with two 1 meter fiber pigtails terminated with LC connectors. The 20-pin package and pinout conform to a multisource transceiver agreement. The transmitter features differential LVPECL logic level data inputs, a LVTTL logic lev

1430G5LL General Description

The 1430G5-Type transceiver is a high-speed, costeffective optical transceiver that is compliant with the International Telecommunication Union Telecommunication (ITU-T) G.957 specifications for use in SONET and SDH long-reach applications. The 1430G5 operates at the OC-3/STM-1 rate of 155 Mbits/s. .
