143-11J12L Datasheet - Coilcraft

143-11J12L 10mm Tunable Coils

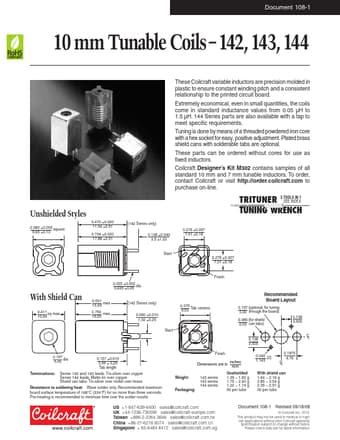

Document 108-1 10 mm Tunable Coils 142, 143, 144 Unshielded Styles 0.380 9,65 ±0.005 ±0,13 square 0.470 ±0.020 11,94 ±0,51 0.704 ±0.020 17,88 ±0,51 These Coilcraft variable inductors are precision molded in plastic to ensure constant winding pitch and a consistent relationship to the printed circuit board. Extremely economical, even in small quantities, the coils come in standard inductance values from 0.05 µH to 1.5 µH. 144 Series parts are also available with a tap to meet speci.

143-11J12L Datasheet (207.91 KB)
