D571

D571-Type Digital 1.5 m m Uncooled DFB FastLight Laser Module

D571 Features

* s s Eight-pin package suitable for SONET/SDH applications Narrow linewidth, distributed-feedback, multiquantum-well (DFB-MQW), 1510 nm or 1550 nm laser with single-mode fiber pigtail Available in narrow and wide temperature ranges No TEC required High output power:

* Typical 2.0 mW peak powe

D571 General Description

The D571-Type Uncooled Laser Module consists of a laser diode coupled to a single-mode fiber pigtail. The device is available in a standard, 8-pin configuration (see Figure 1 and/or Table 1) and is ideal for long-reach (SONET) and other high-speed digital applications. The laser diode is a narrow line.

D571 Datasheet (200.11 KB)

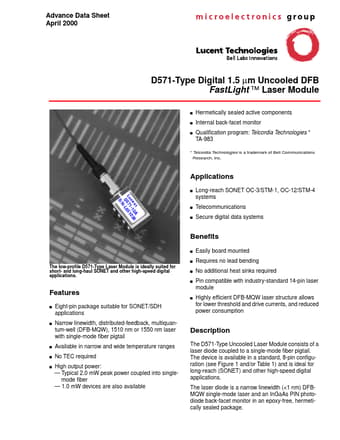

Preview of D571 PDF

Datasheet Details

Part number:

D571

Manufacturer:

Agere Systems

File Size:

200.11 KB

Description:

D571-type digital 1.5 m m uncooled dfb fastlight laser module.
Advance Data Sheet April 2000 D571-Type Digital 1.5 µm Uncooled DFB FastLight ™ Laser Module s s s Hermetically sealed active components Internal ba.
