D5702 Features

* MEDIUM OUTPUT POWER: POUT = +21 dBm TYP @PIN = -2 dBm, f = 2.45 GHz

* ON CHIP OUTPUT POWER CONTROL FUNCTION

* SINGLE SUPPLY VOLTAGE: VDS = 3.0 V TYP

* PACKAGED IN 8 PIN L2MM (2.0 X 2.2 X 0.5mm) SUITABLE FOR HIGH- DENSITY SURFACE MOUNT INTERNAL BLOCK DIAGRAM Pout2

D5702 General Description

NEC's UPD5702TU is a silicon LD MOS IC designed for use as a power amplifier up to 2.4 GHz application. This IC consists of two stage amplifiers. The device is packaged in a low cost, surface mount 8 pin L2MM (Leadless Mini Mold) plastic package. Ideally suited for high density surface mount designs.

D5702 Datasheet (207.23 KB)

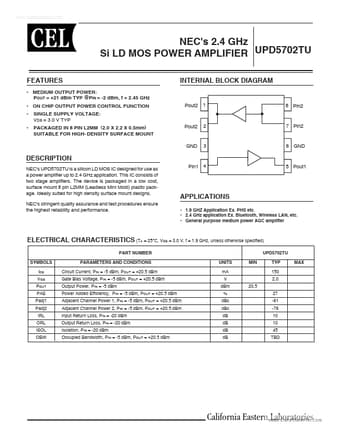

Preview of D5702 PDF

Datasheet Details

Part number:

D5702

Manufacturer:

CEL

File Size:

207.23 KB

Description:

upd5702.
