D5703 Datasheet - Fairchild Semiconductor

D5703 KSD5703

KSD5703 KSD5703 High Voltage Color Display Horizontal Deflection Output (No Damper Diode) High Collector-Base Voltage : VCBO=1500V High Switching Speed tF = 0.3µs (Max.) For Color TV 1 TO-3PF 2.Collector 3.Emitter 1.Base NPN Triple Diffused Planar Silicon Transistor Absolute Maximum Ratings TC=25°C unless otherwise noted Symbol VCBO VCEO VEBO IC ICP PC www.DataSheet4U.com Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector .

D5703_FairchildSemiconductor.pdf

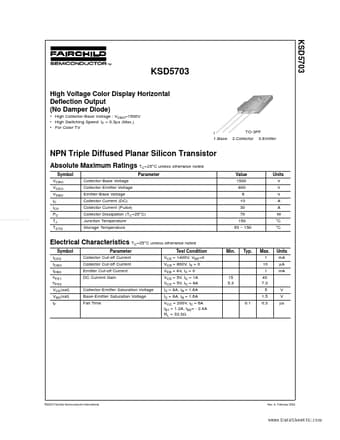

D5703 Datasheet Preview — Preview of D5703 PDF

Datasheet Details

Part number:

D5703

Manufacturer:

Fairchild Semiconductor

File Size:

101.47 KB

Description:

ksd5703.
