R768PDAA - R768-Type OC-768/STM-256 Lightweight Receiver

Product Overview

Agere Systems

Datasheet Details

Part number	R768PDAA
Manufacturer	Agere Systems
File Size	91.36 KB
Description	R768-Type OC-768/STM-256 Lightweight Receiver
Datasheet	R768PDAA Datasheet

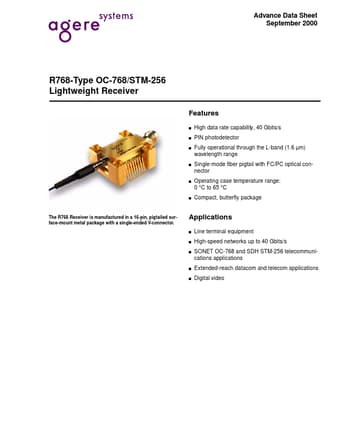

Additional preview pages of the R768PDAA datasheet.

Product details

Description

Receiver Operation The R768 40 Gbits/s fiber-optic receiver consists of a high-speed photodetector (PIN) and a wide-band linear preamp in a pigtailed surface-mount metal package with a single-ended V-connector.It is designed for use in single-mode, high-speed telecommunication applications at the SONET OC-768 and the ITU-T SDH STM-256 data rate of 42.5 Gbits/s.The operating case temperature range for the receiver is 0 °C to 65 °C.The receiver is manufactured in a compact, 16-pin surface-mount

Features

s s s High data rate capability, 40 Gbits/s PIN photodetector Fully operational through the L-band (1.6 µm) wavelength range Single-mode fiber pigtail with FC/PC optical connector Operating case temperature range: 0 °C to 65 °C Compact, butterfly package s s s The R768 Receiver is manufactured in a 16-pin, pigtailed surface-mount metal package with a single-ended V-connector.
