R768PGAA

R768-Type OC-768/STM-256 Lightweight Receiver

R768PGAA Features

* s s s High data rate capability, 40 Gbits/s PIN photodetector Fully operational through the L-band (1.6 µm) wavelength range Single-mode fiber pigtail with FC/PC optical connector Operating case temperature range: 0 °C to 65 °C Compact, butterfly package s s s The R768 Receiver is manufactured

R768PGAA General Description

Receiver Operation The R768 40 Gbits/s fiber-optic receiver consists of a high-speed photodetector (PIN) and a wide-band linear preamp in a pigtailed surface-mount metal package with a single-ended V-connector. It is designed for use in single-mode, high-speed telecommunication applications at the S.

R768PGAA Datasheet (91.36 KB)

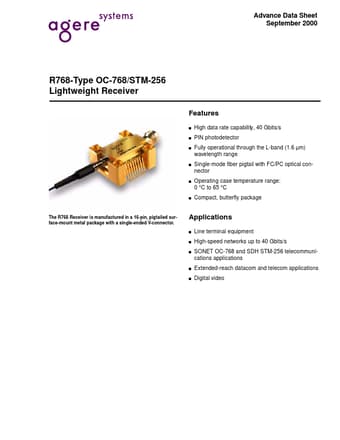

Preview of R768PGAA PDF

Datasheet Details

Part number:

R768PGAA

Manufacturer:

Agere Systems

File Size:

91.36 KB

Description:

R768-type oc-768/stm-256 lightweight receiver.
