ACSL6420

(ACSL6xx0) Multi-Channel and Bi-Directional / 15 MBd Digital Logic Gate Optocoupler

ACSL6420 Features

* Available in dual, triple and quad channel configurations

* Bi-directional Description ACSL-6xx0 are truly isolated, multi-channel and bi-directional, high-speed optocouplers. Integration of multiple optocouplers in monolithic form is achieved through patented process technology. T

ACSL6420 General Description

ACSL-6xx0 are truly isolated, multi-channel and bi-directional, high-speed optocouplers. Integration of multiple optocouplers in monolithic form is achieved through patented process technology. These devices provide full duplex and bi-directional isolated data transfer and communication capability i.

ACSL6420 Datasheet (136.34 KB)

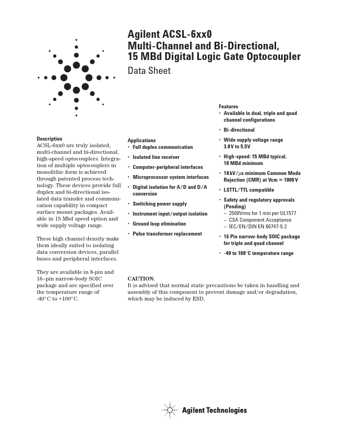

Preview of ACSL6420 PDF

Datasheet Details

Part number:

ACSL6420

Manufacturer:

Agilent

File Size:

136.34 KB

Description:

(acsl6xx0) multi-channel and bi-directional / 15 mbd digital logic gate optocoupler.
