HDSP-2133 (HDSP-21xx) Eight Character 5.0 mm (0.2 inch) Glass/Ceramic Intelligent 5 X 7 Alphanumeric Displays

The HDSP-2131 (yellow), HDSP2179 (orange), HDSP-2132 (high efficiency red) and the HDSP2133 (green) are eight-digit, 5 x 7 dot matrix, alphanumeric displays. The 5.0 mm (0.2 inch) high characters are packaged in a standard 7.64 mm (0.30 inch) 32 pin DIP. The on-board CMOS IC has the ability to decod.

HDSP-2133 Features

* Wide Operating Temperature Range -55°C to +85°C

* Smart Alphanumeric Display On-Board CMOS IC Built-In RAM ASCII Decoder LED Drive Circuitry

* 128 ASCII Character Set

* 16 User Definable Characters

* Programmable Features Individual Character Flashing Full D

HDSP-2133 Datasheet (271.85 KB)

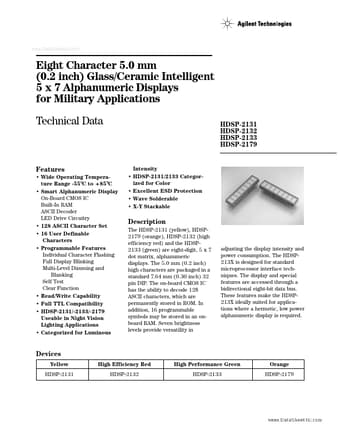

HDSP-2133 Datasheet Preview — Preview of HDSP-2133 PDF

Datasheet Details

Part number:

HDSP-2133

Manufacturer:

Agilent

File Size:

271.85 KB

Description:

(hdsp-21xx) eight character 5.0 mm (0.2 inch) glass/ceramic intelligent 5 x 7 alphanumeric displays.
