HDSP-2502

Eight Character 5 mm and 7 mm Smart Alphanumeric Displays

HDSP-2502 Features

* X Stackable (HDSP-21XX)

* XY Stackable (HDSP-250X)

* 128 Character ASCII Decoder

* Programmable Functions

* 16 User Definable Characters

* Multi-Level Dimming and Blanking

* TTL Compatible CMOS IC

* Wave Solderable Applications

HDSP-2502 General Description

The HDSP-210X/-211X/-250X series of products is ideal for applications where displaying eight or more characters of dot matrix information in an aesthetically pleasing manner is required. These devices are 8-digit, 5 x 7 dot matrix, alphanumeric displays and are all packaged in a standard 15.24 mm (.

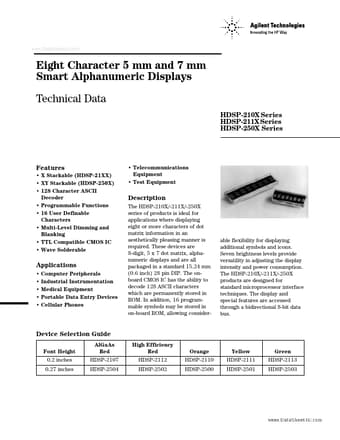

HDSP-2502 Datasheet (433.71 KB)

Preview of HDSP-2502 PDF

Datasheet Details

Part number:

HDSP-2502

Manufacturer:

Agilent

File Size:

433.71 KB

Description:

Eight character 5 mm and 7 mm smart alphanumeric displays.
www.DataSheet4U.com Eight Character 5 mm and 7 mm Smart Alphanumeric Displays Technical Data HDSP-210X Series HDSP-211X Series HDSP-250X Series Fea.
