HLMP-3316-I00xx, HLMP-331x, High Intensity LED Lamps

T-13/4 (5 mm) High Intensity LED Lamps Technical Data HLMP-331x Series HLMP-341x Series HLMP-351x Series .
This family of T-13/4 nondiffused LED lamps is specially designed for applications requiring higher on-axis intensity than is achievable with a standa.

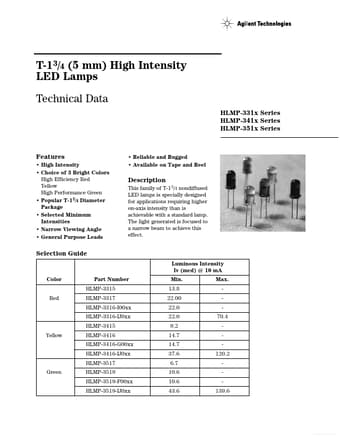

datasheet Preview Page 1 from Datasheet4u.com

HLMP-331x-Agilent.pdf

HLMP-3316-I00xx Datasheet Preview — This datasheet PDF includes multiple part numbers: HLMP-3316-I00xx, HLMP-331x. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HLMP-3316-I00xx, HLMP-331x

Manufacturer:

Agilent

File Size:

217.69 KB

Description:

High Intensity LED Lamps

Note:

This datasheet PDF includes multiple part numbers: HLMP-3316-I00xx, HLMP-331x.
Please refer to the document for exact specifications by model.

Features

* High Intensity
* Choice of 3 Bright Colors High Efficiency Red Yellow High Performance Green
* Popular T-13/4 Diameter Package
* Selected Minimum Intensities
* Narrow Viewing Angle
* General Purpose Leads
* Reliable and Rugged
* Avai

Applications

* requiring higher on-axis intensity than is achievable with a standard lamp. The light generated is focused to a narrow beam to achieve this effect. Selection Guide Luminous Intensity Iv (mcd) @ 10 mA Color Red Part Number HLMP-3315 HLMP-3317 HLMP-3316-I00xx HLMP-3316-IJ0xx HLMP-3415 Yellow HLMP-341
