HLMP-3301 - T-1 3/4 (5 mm) SOLID STATE LAMPS

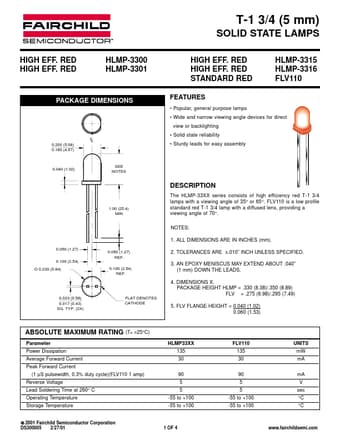

The HLMP-33XX series consists of high efficiency red T-1 3/4 lamps with a viewing angle of 35° or 65°. FLV110 is a low profile standard red T-1 3/4 lamp with a diffused lens, providing a viewing angle of 70°. NOTES: 1. ALL DIMENSIONS ARE IN INCHES (mm). 0.050 (1.27) 0.100 (2.54) Ø 0.230 (5.84) 0.050.

HLMP-3301 Features

* Popular, general purpose lamps

* Wide and narrow viewing angle devices for direct view or backlighting C L HLMP-3315 HLMP-3316 FLV110 PACKAGE DIMENSIONS

* Solid state reliability

* Sturdy leads for easy assembly 0.200 (5.08) 0.180 (4.57) 0.040 (1.02) SEE NOTES
