HLMP-3315 - T-1 3/4 (5 mm) SOLID STATE LAMPS

Datasheet Summary

Description

The HLMP-33XX series consists of high efficiency red T-1 3/4 lamps with a viewing angle of 35° or 65°.

FLV110 is a low profile standard red T-1 3/4 lamp with a diffused lens, providing a viewing angle of 70°.

NOTES: 1.

Features

  • Popular, general purpose lamps.
  • Wide and narrow viewing angle devices for direct view or backlighting C L HLMP-3315 HLMP-3316 FLV110.

📥 Download Datasheet

Datasheet preview – HLMP-3315

Datasheet Details

Part number HLMP-3315
Manufacturer Fairchild Semiconductor
File Size 101.54 KB
Description T-1 3/4 (5 mm) SOLID STATE LAMPS
Datasheet download datasheet HLMP-3315 Datasheet
Additional preview pages of the HLMP-3315 datasheet.

📁 Similar Datasheet

Other Datasheets by Fairchild Semiconductor

Full PDF Text Transcription

Click to expand full text

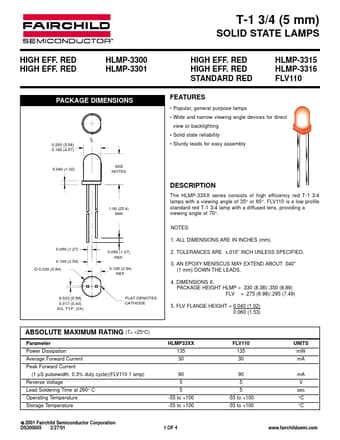

T-1 3/4 (5 mm) SOLID STATE LAMPS HIGH EFF. RED HIGH EFF. RED HLMP-3300 HLMP-3301 HIGH EFF. RED HIGH EFF. RED STANDARD RED FEATURES • Popular, general purpose lamps • Wide and narrow viewing angle devices for direct view or backlighting C L HLMP-3315 HLMP-3316 FLV110 PACKAGE DIMENSIONS • Solid state reliability • Sturdy leads for easy assembly 0.200 (5.08) 0.180 (4.57) 0.040 (1.02) SEE NOTES DESCRIPTION The HLMP-33XX series consists of high efficiency red T-1 3/4 lamps with a viewing angle of 35° or 65°. FLV110 is a low profile standard red T-1 3/4 lamp with a diffused lens, providing a viewing angle of 70°. NOTES: 1. ALL DIMENSIONS ARE IN INCHES (mm). 0.050 (1.27) 0.100 (2.54) Ø 0.230 (5.84) 0.050 (1.27) REF. 0.100 (2.54) REF. 1.00 (25.4) MIN 2. TOLERANCES ARE ±.
