MBR1120 SCHOTTKY BARRIER RECTIFIERS

The MBR120~ MBR1200 are available in SOD-123FL Package. ORDERING INFORMATION Package Type Part Number MBR120 MBR130 MBR140 MBR150 SOD-123FL MBR160 MBR180 MBR1100 MBR1150 MBR1120 Note 3,000pcs/ Reel AiT provides all RoHS Compliant Products PIN DESCRIPTION MBR120~ MBR1200 SCHOTTKY BA.

MBR1120 Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-0

* Low power loss, high efficiency

* For use in low voltage high frequency inverters, free wheeling and polarity protection applications

* Guard Ring for over voltage protection

* High temperature sold

MBR120-AiTComponents.pdf

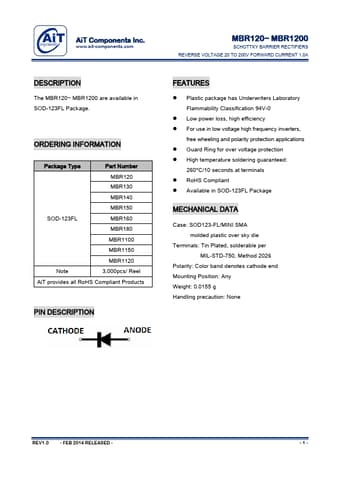

MBR1120 Datasheet Preview — This datasheet PDF includes multiple part numbers: MBR1120, MBR120. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MBR1120, MBR120

Manufacturer:

AiT Components

File Size:

383.58 KB

Description:

Schottky barrier rectifiers.

Note:

This datasheet PDF includes multiple part numbers: MBR1120, MBR120.
Please refer to the document for exact specifications by model.
