AT1366 Datasheet - Aimtron Technology

1MHZ 800MA SYNCHRONOUS BUCK CONTROLLER

AT1366 Features

* High efficiency (95%) possible

* No Schottky Diode Required

* 800mA Output Current at 5V input 3.3V output

* Oscillation frequency 1.0MHz

* Built-in ON/OFF Function

* Low Dropout Operation: 100% Duty Cycle

* Stand-by current max. 1µA

AT1366 General Description

The AT1366 provides complete control for a DC/DC converter optimized for high-performance microprocessor applications. It is operated on current mode architecture for excellent line and load transient response. 1MHz operation frequency is allowing the use of small surface mount inductor and capacito.

AT1366 Datasheet (897.22 KB)

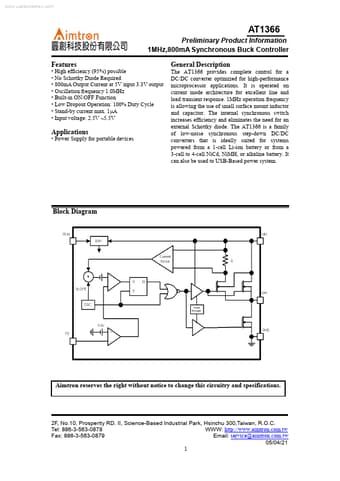

AT1366 Datasheet Preview — Preview of AT1366 PDF

Datasheet Details

Part number:

AT1366

Manufacturer:

Aimtron Technology

File Size:

897.22 KB

Description:

1mhz 800ma synchronous buck controller.
