AT1366B 800mA Synchronous Buck Converter

The AT1366B provides complete control for a DC/DC converter optimized for high-performance microprocessor applications. It is operated on current mode architecture for excellent line and load transient response. 1MHz operation frequency is allowing the use of small surface mount inductor and capacit.

AT1366B Features

* High efficiency (95%) possible

* No Schottky Diode Required

* 800mA Output Current at 5V input 3.3V output

* Oscillation frequency 1.0MHz

* Built-in ON/OFF Function

* Built-in Short Circuit Protection

* Low Dropout Operation: 100% Duty Cycle

AT1366B_AimtronTechnology.pdf

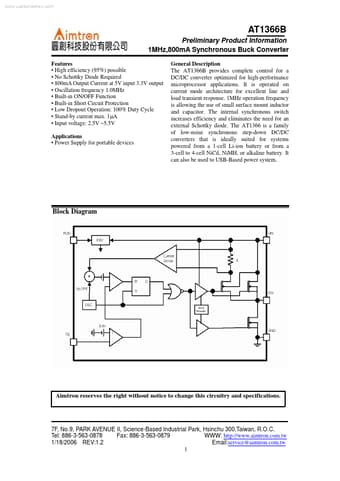

AT1366B Datasheet Preview — Preview of AT1366B PDF

Datasheet Details

Part number:

AT1366B

Manufacturer:

Aimtron Technology

File Size:

373.50 KB

Description:

800ma synchronous buck converter.
