AT1368

1-Channel Synchronous Buck PWM Controller

Aimtron Technology

AT1368 Features

* High efficiency (min. 90% On IO=300mA ~600mA)

* Using external P and N channel MOSFET

* Supports for down and up/down Zeta conversion

* Maximum Duty 100%

* Oscillation frequency 300KHz or 600KHz

* Soft Start by an external capacity

* Output v

AT1368 General Description

The AT1368 provides complete control and protection for a DC/DC converter optimized for high-performance microprocessor applications. It is designed to drive one P-Channel and one NChannel MOSFETs in a synchronous-rectified buck topology. The AT1368 integrates all of the control, output adjustment, .

AT1368 Datasheet (575.44 KB)

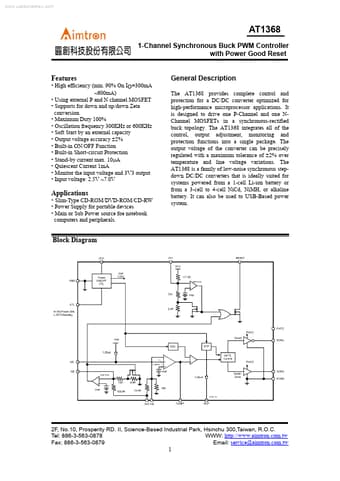

AT1368 Datasheet Preview — Preview of AT1368 PDF

Datasheet Details

Part number:

AT1368

Manufacturer:

Aimtron Technology

File Size:

575.44 KB

Description:

1-channel synchronous buck pwm controller.
