AT1454 Datasheet - Aimtron Technology

AT1454 Photoflash Capacitor Charger

The AT1454 series is a charger IC for Photoflash capacitor with soft-start function, an IGBT driver for igniting flash tube, adjustable output voltage and adjustable switch on-time to perform energy transition on each charge cycle. The output voltage can be adjusted by simply changing the turn ratio.

AT1454_AimtronTechnology.pdf

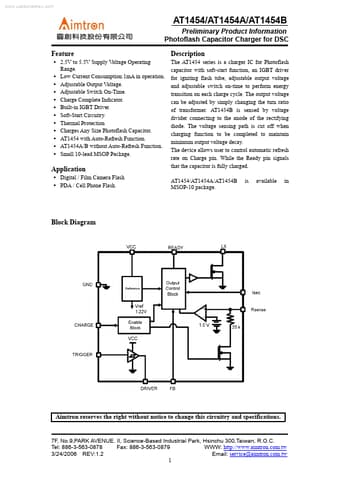

Preview of AT1454 PDF
AT1454 Datasheet Preview Page 2 AT1454 Datasheet Preview Page 3

Datasheet Details

Part number:

AT1454

Manufacturer:

Aimtron Technology

File Size:

508.57 KB

Description:

Photoflash capacitor charger.
