Part number: AT10-0009-TB
Manufacturer: Tyco Electronics
File Size: 236.15KB
Download: 📄 Datasheet
Description: Voltage Variable Absorptive Attenuator/ 800 - 1000 MHz
n n n n n n n n n n
SOW-16
Input IP3: +31 dBm Min. (Full Attenuation Range) Input IP3 is 15 -20 dB Better Than GaAs Linear Operation: +20 dBm Min. Plastic SOIC, Wide Bo.

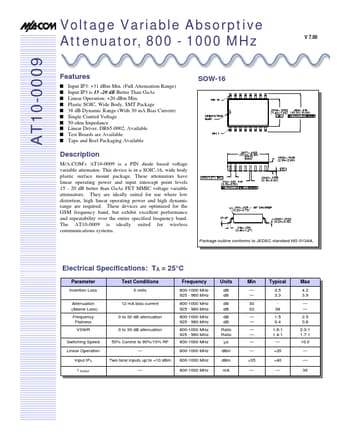

M/A-COM's AT10-0009 is a PIN diode based voltage variable attenuator. This device is in a SOIC-16, wide body plastic surface mount package. These attenuators have linear operating power and input intercept point levels 15 - 20 dB better than GaAs FET.
Image gallery
