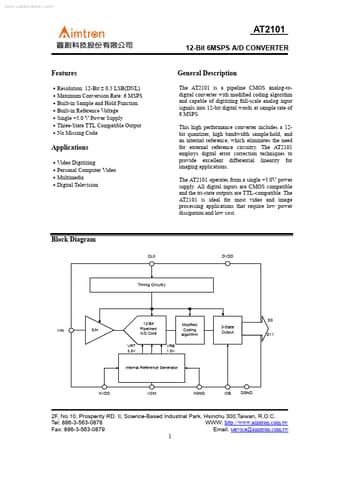

AT2101 Datasheet, Converter, Aimtron Technology

AT2101 Features

• Converter ˙Resolution: 12-Bit ± 0.5 LSB(DNL) ˙Maximum Conversion Rate: 6 MSPS ˙Built-in Sample and Hold Function ˙Built-in Reference Voltage ˙Single +5.0 V Power Supply ˙Three-State TTL Compatibl

PDF File Details

Part number:

AT2101

Manufacturer:

Aimtron Technology

File Size:

234.96kb

Download:

📄 Datasheet

Description:

12-bit 6msps a/d converter. The AT2101 is a pipeline CMOS analog-todigital converter with modified coding algorithm and capable of digitizing full-scale analog i

AT2101 Application

• Applications The AT2101 operates from a single +5.0V power supply. All digital inputs are CMOS compatible and the tri-state outputs are TTL-compati
