AT21CS11, AT21CS01, EEPROM

AT21CS01/AT21CS11 Single-Wire, I/O Powered 1-Kbit (128 x 8) Serial EEPROM with a Unique, Factory-Programmed 64-Bit Serial Number .
5 1.

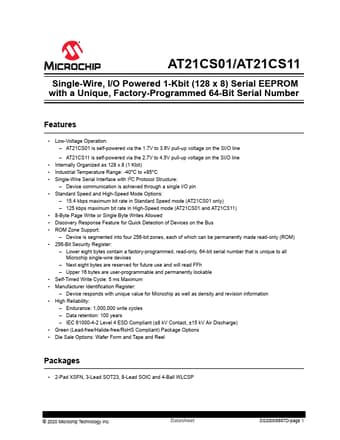

datasheet Preview Page 1 from Datasheet4u.com

AT21CS01-Microchip.pdf

AT21CS11 Datasheet Preview — This datasheet PDF includes multiple part numbers: AT21CS11, AT21CS01. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

AT21CS11, AT21CS01

Manufacturer:

Microchip ↗

File Size:

927.53 KB

Description:

EEPROM

Note:

This datasheet PDF includes multiple part numbers: AT21CS11, AT21CS01.
Please refer to the document for exact specifications by model.

Features

* Low‑Voltage Operation:
* AT21CS01 is self-powered via the 1.7V to 3.6V pull‑up voltage on the SI/O line
* AT21CS11 is self-powered via the 2.7V to 4.5V pull‑up voltage on the SI/O line
* Internally Organized as 128 x 8 (1 Kbit)
* Industrial Temperature Range
