ATS667LSG - High Accuracy Gear Tooth Sensor

Product Overview

Allegro Micro Systems

Datasheet Details

Part number	ATS667LSG
Manufacturer	Allegro Micro Systems
File Size	1.18 MB
Description	High Accuracy Gear Tooth Sensor
Datasheet	ATS667LSG Datasheet

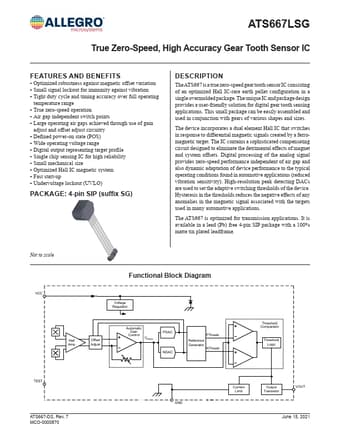

Additional preview pages of the ATS667LSG datasheet.

Product details

Description

TheATS667 is a true zero-speed gear tooth sensor IC consisting of an optimized Hall IC-rare earth pellet configuration in a single overmolded package.

Features

Optimized robustness against magnetic offset variation.
Small signal lockout for immunity against vibration.
Tight duty cycle and timing accuracy over full operating temperature range.
True zero-speed operation.
Air gap independent switch points.
Large operating air gaps achieved through use of gain adjust and offset adjust circuitry.
Defined power-on state (POS).
Wide operating voltage range.
Digital output representing target profile.
Single c.
