ATS660LSB TRUE ZERO-SPEED HALL-EFFECT ADAPTIVE GEAR-TOOTH SENSOR

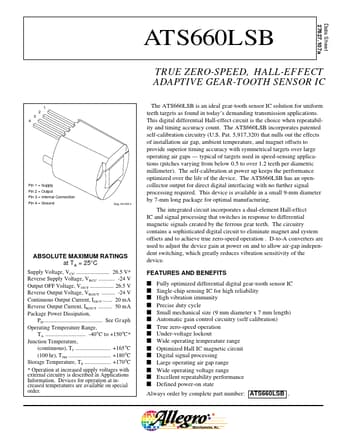

Data Sheet 27627.107a ATS660LSB TRUE ZERO-SPEED, HALL-EFFECT ADAPTIVE GEAR-TOOTH SENSOR IC 1 2 3 4 Pin 1 = Supply Pin 2 = Output Pin 3 = Internal Connection Pin 4 = Ground Dwg. AH-006-4 ABSOLUTE MAXIMUM RATINGS at TA = 25°C Supply Voltage, VCC 26.5 V Reverse Supply Voltage, VRCC -24 V Output OFF Voltage, VOUT 26.5 V Reverse Output Voltage, VROUT -24 V Continuous Output Current, IOUT 20 mA Reverse Output Current, IROUT 50 mA Package Power Dissipation, PD See Graph Operating Temp.

ATS660LSB Features

* Fully optimized differential digital gear-tooth sensor IC

* Single-chip sensing IC for high reliability

* High vibration immunity

* Precise duty cycle

* Small mechanical size (9 mm diameter x 7 mm length)

* Automatic gain control circuitry (self calibration)

* True zero

ATS660LSB_AllegroMicroSystems.pdf

ATS660LSB Datasheet Preview — Preview of ATS660LSB PDF

Datasheet Details

Part number:

ATS660LSB

Manufacturer:

Allegro MicroSystems

File Size:

1.40 MB

Description:

True zero-speed hall-effect adaptive gear-tooth sensor.
