STR-F6600 Datasheet, Regulators, Allegro Micro Systems

STR-F6600 Features

  • Regulators The series is provided in a five-pin overmolded TO-3P style package, affording dielectric isolation without compromising thermal characteristics. 2 3 VIN 1 OVER-CURRENT & FEEDBACK

PDF File Details

Part number:

STR-F6600

Manufacturer:

Allegro Micro Systems

File Size:

319.64kb

Download:

📄 Datasheet

Description:

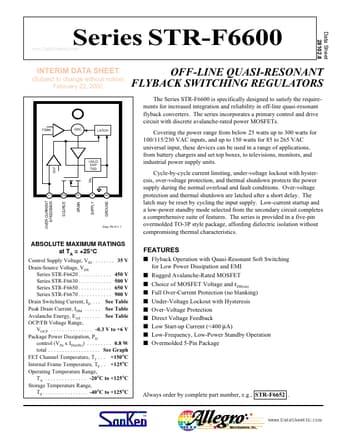

Off-line quasi-resonant flyback switching regulators. and Operation The voltage on the VIN terminal (pin 4) controls startup and shutdown of the Series STR-F6600 devices. Figure 1 shows

Datasheet Preview: STR-F6600 📥 Download PDF (319.64kb)
Page 2 of STR-F6600 Page 3 of STR-F6600

STR-F6600 Application

  • Applications from battery chargers and set top boxes, to televisions, monitors, and industrial power supply units. Cycle-by-cycle current limiting,
