STR-F66xx Off-line Quasi-resonant Flyback Switching Regulators

and Operation The voltage on the VIN terminal (pin 4) controls startup and shutdown of the Series STR-F6600 devices. Figure 1 shows a typical start up circuit. The VIN terminal voltage during startup is shown in figure 2. At startup, C2 is charged through the startup resistor RS. When the VIN term.

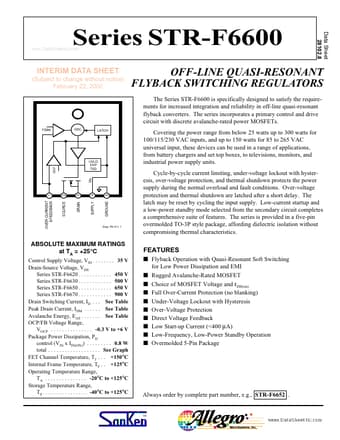

www.DataSheet4U.com Series STR-F6600 Data Sheet 28102.8 INTERIM DATA SHEET (Subject to change without notice) February 22, 2000 OFF-LINE QUASI-RESONANT FLYBACK SWITCHING REGULATORS The Series STR-F6600 is specifically designed to satisfy the requirements for increased integration and reliability in off-line quasi-resonant flyback converters. The series incorporates a primary control and drive circuit with discrete avalanche-rated power MOSFETs. FDBK OSC. LATCH OCP UVLO OVP TSD Covering.

STR-F66xx Datasheet (319.64 KB)

STR-F66xx Datasheet Preview — Preview of STR-F66xx PDF

Datasheet Details

Part number:

STR-F66xx

Manufacturer:

Allegro Micro Systems

File Size:

319.64 KB

Description:

Off-line quasi-resonant flyback switching regulators.
