SMOKE DETECTOR WITH INTERCONNECT AND TIMER

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Adafruit Industries 5348 QT PY ESP32-S2 WIFI DEV BOARD DigiKey 88 1 units
$12.5

5348 Datasheet (90.24 KB)

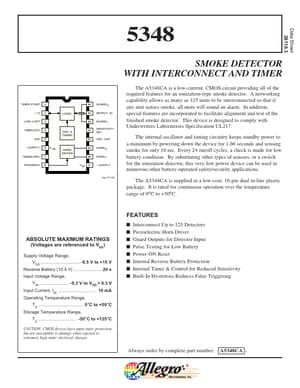

Preview of 5348 PDF Datasheet

Datasheet Details

Part number:

5348

Manufacturer:

Allegro MicroSystems

File Size:

90.24 KB

Description:

Smoke detector with interconnect and timer

5348 Features

* for an ionization-type smoke detector. A networking capability allows as many as 125 units to be interconnected so that if any unit senses smoke, all units will sound an alarm. In addition, special features are incorporated to facilitate alignment and test of the finished smoke detector. This device

5348 General Description

The A5348CA is a low-current CMOS circuit providing all of the required features for an ionization-type smoke detector. Oscillator. An internal oscillator operates with a period of 1.67 seconds during nosmoke conditions. Every 1.67 seconds, internal power is applied to the entire circuit and a check.
