5349

AC SMOKE DETECTOR WITH INTERCONNECT AND TIMER

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Adafruit Industries 5349 HOLOGRAPHIC RFID BLOCKING CARD H DigiKey 0 1 units
$2.95

5349 Datasheet (83.41 KB)

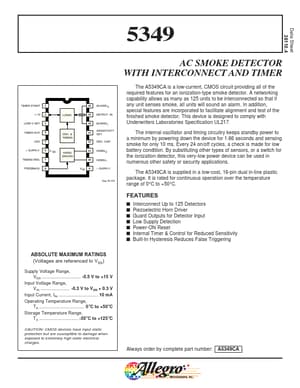

Preview of 5349 PDF Datasheet

Datasheet Details

Part number:

5349

Manufacturer:

Allegro MicroSystems

File Size:

83.41 KB

Description:

Ac smoke detector with interconnect and timer

5349 Features

* for an ionization-type smoke detector. A networking capability allows as many as 125 units to be interconnected so that if any unit senses smoke, all units will sound an alarm. In addition, special features are incorporated to facilitate alignment and test of the finished smoke detector. This device

5349 General Description

The A5349CA is a low-current CMOS circuit providing all of the required features for an ionization-type smoke detector. Oscillator. An internal oscillator operates with a period of 1.67 seconds during no-smoke conditions. Every 1.67 seconds, internal power is applied to the entire circuit and a chec.
