5616 4-DIGIT LCD AUTOMOTIVE CLOCK-PROGRAMMABLE

DATA Logic Levels are VDD and Ground Power-Up Reset. When power up occurs, the hours and minutes counters are reset, and the clock starts running: Operation 12-Hour mode and counting starts from 1:00 AM Programming Modes. Data is loaded by pulling DATA low (1 µs pulse duration) n times to set the d.

www.DataSheet4U.com 5616 2-FUNCTION, 4-DIGIT LCD AUTOMOTIVE CLOCK 5616 Data Sheet 26110 2-FUNCTION, 4-DIGIT LCD AUTOMOTIVE CLOCK PROGRAMMABLE The SCL5616HW is a 2-function digital automotive clock circuit. Fabricated on a single monolithic chip using silicon-gate CMOS PROM technology, it offers low cost, low power, and high reliability. It also includes digital frequency correction, stored in the internal nonvolatile memory, for easy adjustment of the oscillator nominal frequency. c.

5616 Features

* SELECT GROUND ABSOLUTE MAXIMUM RATINGS Supply Current, IDD 2.0 mA Input Voltage Range, VIN (except VPP) -0.3 V to VDD (Programming Power Voltage, VPP) 18.5 V Input Current (except VPP), IIN ±10 mA Power Dissipation, PD 300 mW Operating Temperature Range, TA -40°C to +85°C Storage Temperatu

5616_AllegroMicroSystems.pdf

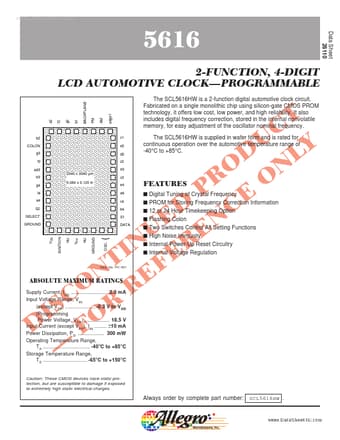

5616 Datasheet Preview — Preview of 5616 PDF

Datasheet Details

Part number:

5616

Manufacturer:

Allegro MicroSystems

File Size:

118.04 KB

Description:

4-digit lcd automotive clock-programmable.
