561-0901-XXX (561-xx0x-XXX) 5mm LED CBI Circuit Board Indicator Vertical

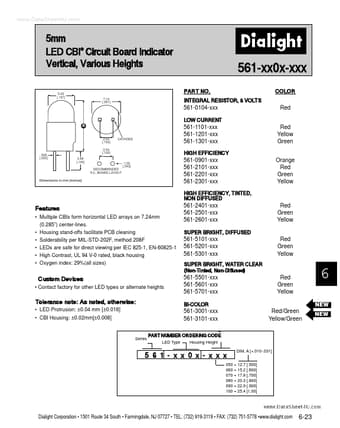

www.DataSheet4U.com 5mm LED CBI® Circuit Board Indicator Vertical, Various Heights 5.00 [.197] 561-xx0x-xxx PART NO. COLOR Red INTEGRAL RESISTOR, 5 VOLTS 7.14 [.281] A HOUSING TYPE DIM. A -050 12.7 [.500] -070 17.8 [.700] -100 25.4 [1.00] 561-0104-xxx LOW CURRENT 2.54 [.100] 2.54 [.100] 3.68 [.145] CATHODE 561-1101-xxx 561-1201-xxx 561-1301-xxx HIGH EFFICIENCY Red Yellow Green Orange Red Green Yellow .508 [.020] 1.09 [.043] RECOMMENDED P.C. BOARD LAYOUT Dimensions in mm [inches] 56.

561-0901-XXX Features

* Multiple CBIs form horizontal LED arrays on 7.24mm (0.285”) center-lines.

* Housing stand-offs facilitate PCB cleaning

* Solderability per MIL-STD-202F, method 208F

* LEDs are safe for direct viewing per IEC 825-1, EN-60825-1

* High Contrast, UL 94 V-0 rated

561-0104-XXX_DialightCorporation.pdf

561-0901-XXX Datasheet Preview — This datasheet PDF includes multiple part numbers: 561-0901-XXX, 561-0104-XXX. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

561-0901-XXX, 561-0104-XXX

Manufacturer:

Dialight Corporation

File Size:

115.17 KB

Description:

(561-xx0x-xxx) 5mm led cbi circuit board indicator vertical.

Note:

This datasheet PDF includes multiple part numbers: 561-0901-XXX, 561-0104-XXX.
Please refer to the document for exact specifications by model.
