561-1375KOP Datasheet - Eagle

561-1375KOP (561-xxxxKOP) Knock Out Plugs

7/8" Knock Out Plug 1 1/8" Knock Out Plug 1 3/8" Knock Out Plug 1 3/4" Knock Out Plug 2" Knock Out Plug Hole Max. Diameter Thickness .875 1.093 1.375 1.75 2 .125 .125 .125 .125 .125 Head Dia. B: In (mm) 1.016 (25.81) 1.218 (30.94) 1.5 (38.1) 1.925 (48.9) 2.14 (54.36) Thickness C .453 .453 .453 .453 .
www.DataSheet4U.com Knock Out Plugs 561-0875KOP, 561-1093KOP, 561-1375KOP, 561-1750KOP, 561-2000KOP Date Last Revised: 10-23-06 B ±.015 1/16" 3/32" 3/32" C ±.015 1/16" 1/8" Dimensions: In Molded in a gray nylon to blend in with galvanized steel Economical plugs lock firmly into 5 trade size holes with thicknesses up to 1/8" Installs with fingertip pressure - no tools required SPECIFICATIONS Mouser Num. 561-0875KOP 561-1093KOP 561-1375KOP 561-1750KOP 561-2000K.

561-1375KOP Datasheet (158.44 KB)

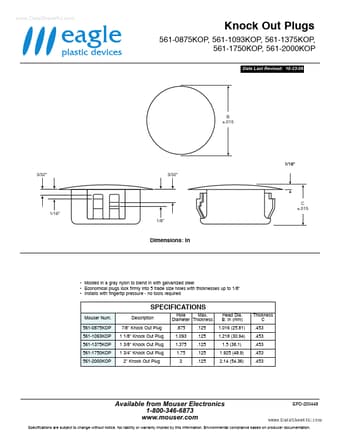

Preview of 561-1375KOP PDF

Datasheet Details

Part number:

561-1375KOP

Manufacturer:

Eagle

File Size:

158.44 KB

Description:

(561-xxxxkop) knock out plugs.
