A1260 - Chopper Stabilized Precision Vertical Hall-Effect

Product Overview

Allegro MicroSystems

Datasheet Details

Part number	A1260
Manufacturer	Allegro MicroSystems
File Size	608.49 KB
Description	Chopper Stabilized Precision Vertical Hall-Effect
Datasheet	A1260 Datasheet

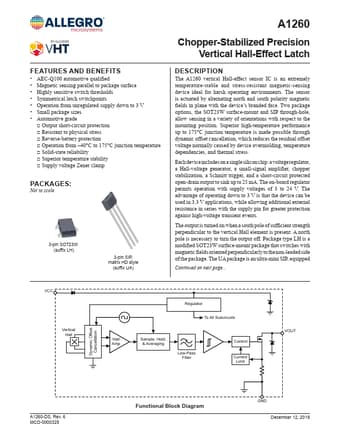

Additional preview pages of the A1260 datasheet.

Product details

Description

The A1260 vertical Hall-effect sensor IC is an extremely temperature-stable and stress-resistant magnetic-sensing device ideal for harsh operating environments.

Features

AEC-Q100 automotive qualified.
Magnetic sensing parallel to package surface.
Highly sensitive switch thresholds.
Symmetrical latch switchpoints.
Operation from unregulated supply down to 3 V.
Small package sizes.
Automotive grade.
Output short-circuit protection.
Resistant to physical stress.
Reverse-battery protection.
Operation from.
40°C to 175°C junction.
