A1267 Datasheet - FORWARD INTERNATIONAL ELECTRONICS

A1267 2SA1267

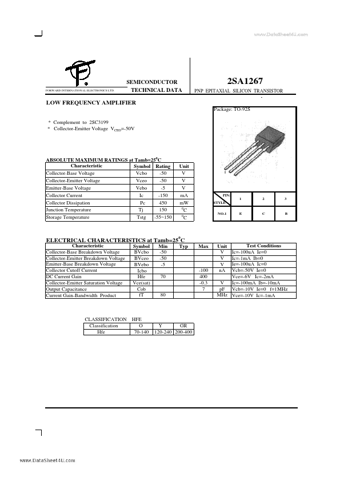

www.DataSheet4U.com SEMICONDUCTOR FORWARD INTERNATIONAL ELECTRONICS LTD. 2SA1267 PNP EPITAXIAL SILICON TRANSISTOR TECHNICAL DATA LOW FREQUENCY AMPLIFIER Package: TO-92S Complement to 2SC3199 Collector-Emitter Voltage VCEO=-50V ABSOLUTE MAXIMUM RATINGS at Tamb=250C Characteristic Symbol Rating Collector-Base Voltage Vcbo -50 Collector-Emitter Voltage Vceo -50 Emitter-Base Voltage Vebo -5 Collector Current Ic -150 Collector Dissipation Pc 450 Junction Temperature Tj 150 Storage Te.

A1267 Datasheet (283.34 KB)

A1267 Datasheet Preview — Preview of A1267 PDF

Datasheet Details

Part number:

A1267

Manufacturer:

FORWARD INTERNATIONAL ELECTRONICS

File Size:

283.34 KB

Description:

2sa1267.
