A1323 - Ratiometric Linear Hall Effect Sensor IC

Product Overview

Allegro MicroSystems

Datasheet Details

Part number	A1323
Manufacturer	Allegro MicroSystems
File Size	333.42 KB
Description	Ratiometric Linear Hall Effect Sensor IC
Datasheet	A1323 Datasheet
Note	This datasheet PDF includes multiple part numbers: A1323, A13. Please refer to the document for exact specifications by model.

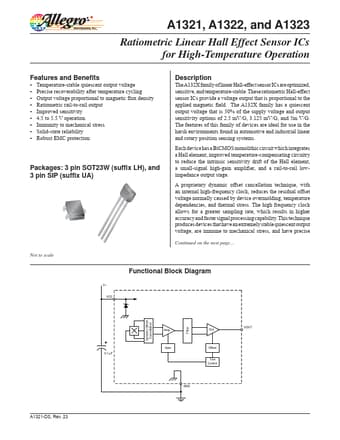

Additional preview pages of the A1323 datasheet.

Product details

Description

Connects power supply to chip Output from circuit Ground Number Package LH Package UA 1 1 2 3 3 2 A1321-DS Rev.3 Allegro MicroSystems, Inc.115 Northeast Cutoff, Box 15036 Worcester, Massachusetts 01615-0036 (508) 853-5000 www.allegromicro.com 2 A1321/A1322/A1323 Ratiometric Linear Hall Effect Sensor for High-Temperature Operation DEVICE CHARACTERISTICS1 over operating temperature (TA) range, unless otherwise noted Characteristic Symbol Test Conditions Min.Electrical Characteristics; VCC =

Features

of this family of devices are ideal for use in the harsh environments found in automotive and industrial linear and rotary position sensing systems. Each device has a BiCMOS monolithic circuit which integrates a Hall element, improved temperature-compensating circuitry to reduce the intrinsic sensitivity drift of the Hall element, a small-signal high-gain ampliﬁer, and a rail-to-rail lowimpedance output stage. A proprietary dynamic offset cancellation technique, with an internal high-frequency c.
