A2550 Relay Driver

A2550 Description

A2550 Relay Driver with 5 V Regulator for Automotive Applications .
Large numbers of relay-based applications require the use of a microprocessor which implements complex system control.

A2550 Features

* ▪ Three independent low-side DMOS output drivers ▪ Short-circuit protection of drivers ▪ Eliminates need for flyback diodes on relays ▪ Thermal shutdown ▪ Separate precision 5 V regulator (2%) ▪ Current clamp on 5 V regulator ▪ 16-pin TSSOP package with exposed thermal pad ▪ Programmable reset (NPOR

📥 Download Datasheet

Preview of A2550 PDF

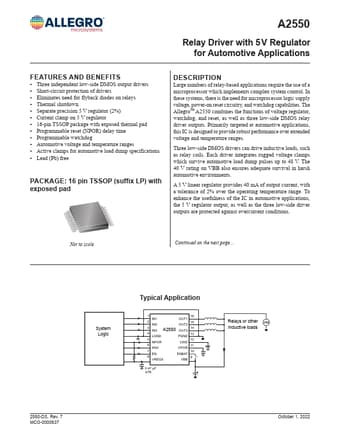

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
A2550
Manufacturer
Allegro MicroSystems
File Size
686.05 KB
Datasheet
A2550_AllegroMicroSystems.pdf
Description
Relay Driver
