A2557 - PROTECTED QUAD LOW-SIDE DRIVER WITH FAULT DETECTION & SLEEP MODE

AND APPLICATION The A2557 low-current quad power drivers provide the same protected output driver function as (and are pin compatible with) the UDx2543/49/59 devices, combined with a fault diagnostic scheme similar to the UDx2547, plus an automatic low-current Sleep-Mode function.

These devices moni

2557 A2557xLB OUT1 K OUT2 GROUND GROUND OUT3 FAULT OUT4 1 2 3 4 5 6 7 8 16 15 14 13 12 11 10 9 IN 1 IN2 ENABLE GROUND GROUND V CC IN 3 IN 4 PROTECTED QUAD LOW-SIDE DRIVER WITH FAULT DETECTION & SLEEP MODE The A2557xB, A2557xEB, and A2557xLB have been specifically designed to provide cost-effective solutions to relay-driving applications with up to 300 mA drive current per channel.

They may also be used for driving incandescent lamps in applications where turn-on time is not a concern.

Each of t

A2557 Features

* I 300 mA Output Current per Channel I Independent Over-Current Protection &Thermal Limiting for Each Driver I Output Voltage to 60 V I Output SOA Protection I Fault-Detection Circuitry for Open or Shorted Load I Low Quiescent Current Sleep Mode I Integral Output Flyback/Clamp Diodes I TTL- and 5 V C

A2557_AllegroMicroSystems.pdf

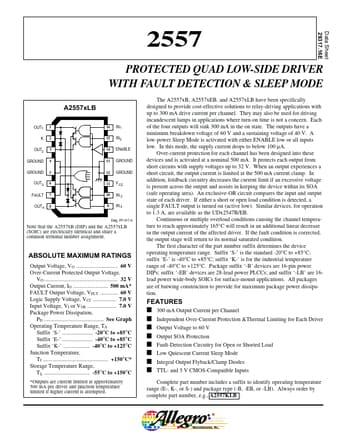

Preview of A2557 PDF
A2557 Datasheet Preview Page 2 A2557 Datasheet Preview Page 3

Datasheet Details

Part number:

A2557

Manufacturer:

Allegro MicroSystems

File Size:

176.69 KB

Description:

Protected quad low-side driver with fault detection & sleep mode.
