A2550N Datasheet, CAA2550N, Sony

A2550N Features

• Caa2550n
• Low power consumption (35mW at 3.5V)
• APC circuit
• RF level control circuit
• Both single power supply and dual power supply operations possible. Str

PDF File Details

Part number:

A2550N

Manufacturer:

Sony

File Size:

256.83kb

Download:

📄 Datasheet

Description:

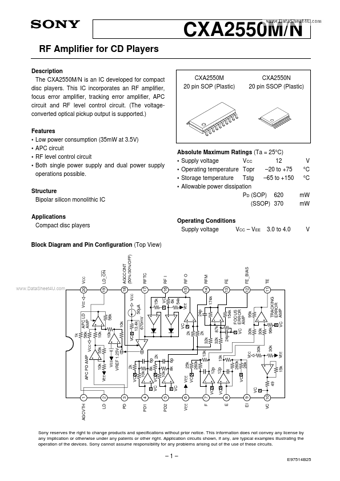

caa2550n. The CXA2550M/N is an IC developed for compact disc players. This IC incorporates an RF amplifier, focus error amplifier, tracking err

A2550N Application

• Applications Compact disc players Block Diagram and Pin Configuration (Top View) 18 AGCCONT (50%/30%/OFF) CXA2550M 20 pin SOP (Plastic) CXA2550N 2
