A3422 Datasheet - Allegro MicroSystems

Hall Effect Direction Detection Sensor

A3422 Features

* Internal Direction-Decoding Circuitry

* Two Matched Hall Bipolar Switches on a Single Substrate

* Superior Temperature Stability

* 4.5 V to 18 V Operation Electrically Defined Power-On State Undervoltage Lockout 3422 HALL-EFFECT, DIRECTION-DETECTION SENSOR IC Sele

A3422 General Description

The integrated circuit contains an internal voltage regulator that powers the Hall elements and both the analog and digital circuitry. This regulator allows operation over a wide supply voltage range and provides some immunity to supply noise. The device also contains CMOS logic circuitry that deco.

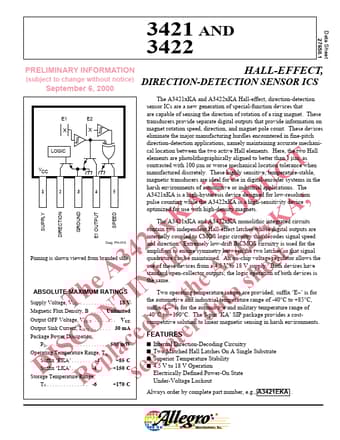

A3422 Datasheet (1.20 MB)

A3422 Datasheet Preview — Preview of A3422 PDF

Datasheet Details

Part number:

A3422

Manufacturer:

Allegro MicroSystems

File Size:

1.20 MB

Description:

Hall effect direction detection sensor.
A3422 Hall Effect Direction Detection Sensor IC Last Time Buy These parts are in production but have been determined to be LAST TIME BUY. This classif.
