A34M416 - 32-bit Microcontroller

Product Overview

ABOV

Datasheet Details

Part number	A34M416
Manufacturer	ABOV
File Size	2.23 MB
Description	32-bit Microcontroller
Datasheet	A34M416 Datasheet
Note	This datasheet PDF includes multiple part numbers: A34M416, A34M418. Please refer to the document for exact specifications by model.

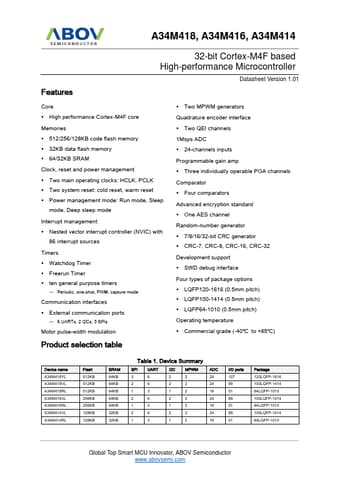

Additional preview pages of the A34M416 datasheet.

Product details

Description

8 1.1 Device overview 8 1.2 Block diagram 15 2 Pinouts and pin descriptions 16 2.1 Pinouts 16 A34M418YL (120 LQFP) 16 A34M418VL/A34M416VL/A34M414VL (100 LQFP) 17 A34M418RL/A34M416RL/A34M414RL (64 LQFP) 18 2.2 Pin description 19 3 System and memory overview 27 3.1 System architecture 27 Cortex-M4F core 27 Interrupt controller 27 3.2 Floating Point Unit (FPU) 31 3.3 Memory organization 31 Register boundary address 32 Memory map 33 Embedded SRAM 34 Flash memory overview 34 Boot mode

Features

32-bit Cortex-M4F based High-performance Microcontroller Datasheet Version 1.01 Core.
High performance Cortex-M4F core Memories.
512/256/128KB code flash memory.
32KB data flash memory.
64/32KB SRAM Clock, reset and power management.
Two main operating clocks: HCLK, PCLK.
Two system reset: cold reset, warm reset.
Power management mode: Run mode, Sleep mode, Deep sleep mode Interrupt management.
Nested vector interrupt controller (NVIC) with 86 interrupt.
